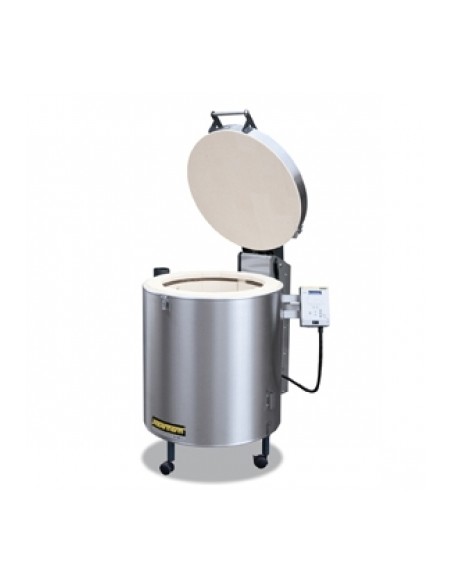

Top Loader-Round Kiln B130 Controller

Top Loader-Round Kiln B130 Controller

Top 100

Pack Size: 1

100% secure payments

FUNCTION AND EQUIPMENT

The attractive design, low weight, and convincing price-performance ratio are just a few of the advantages of our top loaders. These models always deliver very good firing results and are the right choice for hobby potters and workshops.

The particularly energy-saving refractory insulation and energy efficient backing insulation ensure that a maximum temperature of 1320 °C is reached with low electrical connected loads. The tabletop model Top 16/R is also suitable for testing glazes and firing samples.

For intensive professional use, we recommend our rectangular top loaders or chamber kilns with heating from five sides.

STANDARD DESIGN

  • Heating elements protected in grooves, heating from all around

  • Three-layer insulation with light-weight refractory bricks and high-quality, energy-saving backing insulation, up to 60 liters (two-layer insulation from Top 80)

  • Thermocouple protected in the kiln wall

  • Sturdy, locking castors for easy movement of the kiln

  • Top 16/R available as a tabletop model without castors

  • Defined application within the constraints of the operating instructions

PROCESS CONTROL AND DOCUMENTATION

As one of the world's largest furnace manufacturers, Nabertherm has many years of experience in the design and manufacture of standardized and customer-specific control systems. All controls are characterized by a very high level of operating convenience and even the basic version has extensive basic functions. Depending on the requirements, the functions can be expanded and adapted to your needs. Professional software solutions for single or multiple furnace management as well as process and batch documentation based on our Nabertherm controllers complete the range.

TECHNICAL SPECIFICATION

Model Tmax Inner dimensions in mm Volume Outer dimensions2 in mm Connected Electrical Weight
°C w d h in l W D H load kW connection in kg
Top 16/R 1320 Ø 290 230 16 490 740 560 2.6 1-phase 32
Top 45/L 1320 Ø 410 340 45 600 890 730 2.9 1-phase 62
Top 45 1320 Ø 410 340 45 600 890 730 3.6 1-phase 62
Top 45/R 1320 Ø 410 340 45 600 890 730 5.5 3-phase1 62
Top 60/L 1200 Ø 410 460 60 600 890 850 2.9 1-phase 72
Top 60 1320 Ø 410 460 60 600 890 850 3.6 1-phase 72
Top 60/R 1320 Ø 410 460 60 600 890 850 5.5 3-phase1 72
Top 80 1320 Ø 480 460 80 660 960 860 5.5 3-phase1 100
Top 80/R 1320 Ø 480 460 80 660 960 860 7 3-phase1 100
Top 100 1320 Ø 480 570 100 660 960 970 7.0 3-phase 102
Top 100/R 1320 Ø 480 570 100 660 960 970 9 3-phase 102
Top 130 1320 Ø 590 460 130 780 1080 880 9.0 3-phase 110
Top 140 1320 Ø 550 570 140 750 1040 990 9.0 3-phase 124
Top 140/R 1320 Ø 550 570 140 750 1040 990 11 3-phase 124
Top 160 1320 Ø 590 570 160 780 1080 990 9.0 3-phase 130
Top 190 1320 Ø 590 690 190 780 1080 1110 11.0 3-phase 146
Top 190/R 1320 Ø 590 690 190 780 1080 1110 13.5 3-phase 146
Top 220 1320 930 590 460 220 1120 1050 900 15.0 3-phase 150
1Heating only between two phases
2External dimensions vary when furnace is equipped with additional equipment. Dimensions on request
